ASRock AMD B850M Pro RS Socket AM5 Ryzen DDR5 8000+(OC) MHz 256GB B850 Micro ATX Motherboard M.2 Key E for WiFi 6E SATA3 6.0 Gb/s PCIe 5.0 2.5G LAN HDMI DisplayPort USB 3.2 Gen2

ASRock B850M Pro RS

Key Specifications

• Socket: AM5
• Chipset: AMD B850
• Form Factor: Micro ATX
• CPU Compatibility: AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors
• Memory:
• 4× DDR5 UDIMM slots
• Supports up to 256GB (64GB per slot)

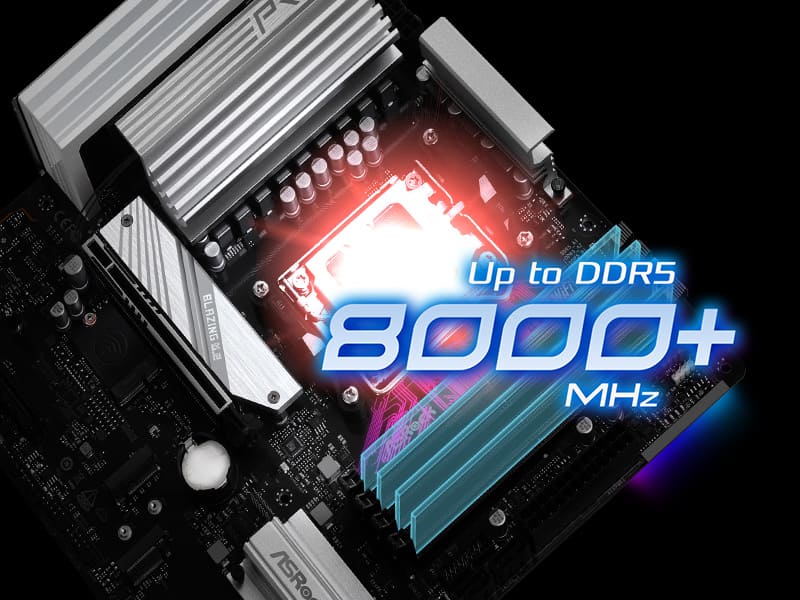

• Memory speeds up to 8000+ MHz (OC)
• Supports AMD EXPO™ and ECC/non-ECC memory
• Expansion Slots:
• 1× PCIe 5.0/4.0 x16 (CPU-dependent)
• 1× PCIe 4.0 x4
• Storage:
• 3× M.2 slots (1× PCIe Gen5x4, 2× PCIe Gen4x4)
• 4× SATA3 6.0 Gb/s ports
• Networking:
• Realtek® 8125BG 2.5G LAN
• Wi-Fi 6E (802.11axe) + Bluetooth 5.2
• USB Ports:
• 1× USB 3.2 Gen2x2 Type-C (Rear)
• 1× USB 3.2 Gen2 Type-A (Rear)
• 1× USB 3.2 Gen1 Type-C (Front)
• 6× USB 3.2 Gen1 Type-A (Front/Rear)
• 8× USB 2.0 (Front/Rear)
• Audio:
• Realtek® ALC897 Codec
• 7.1-channel HD audio
• Graphics Outputs:
• 1× HDMI (supports up to 4K 120Hz)
• 1× DisplayPort (supports up to 4K 120Hz)
• Additional Features:
• Q-Flash Plus
• EZ Debug LED

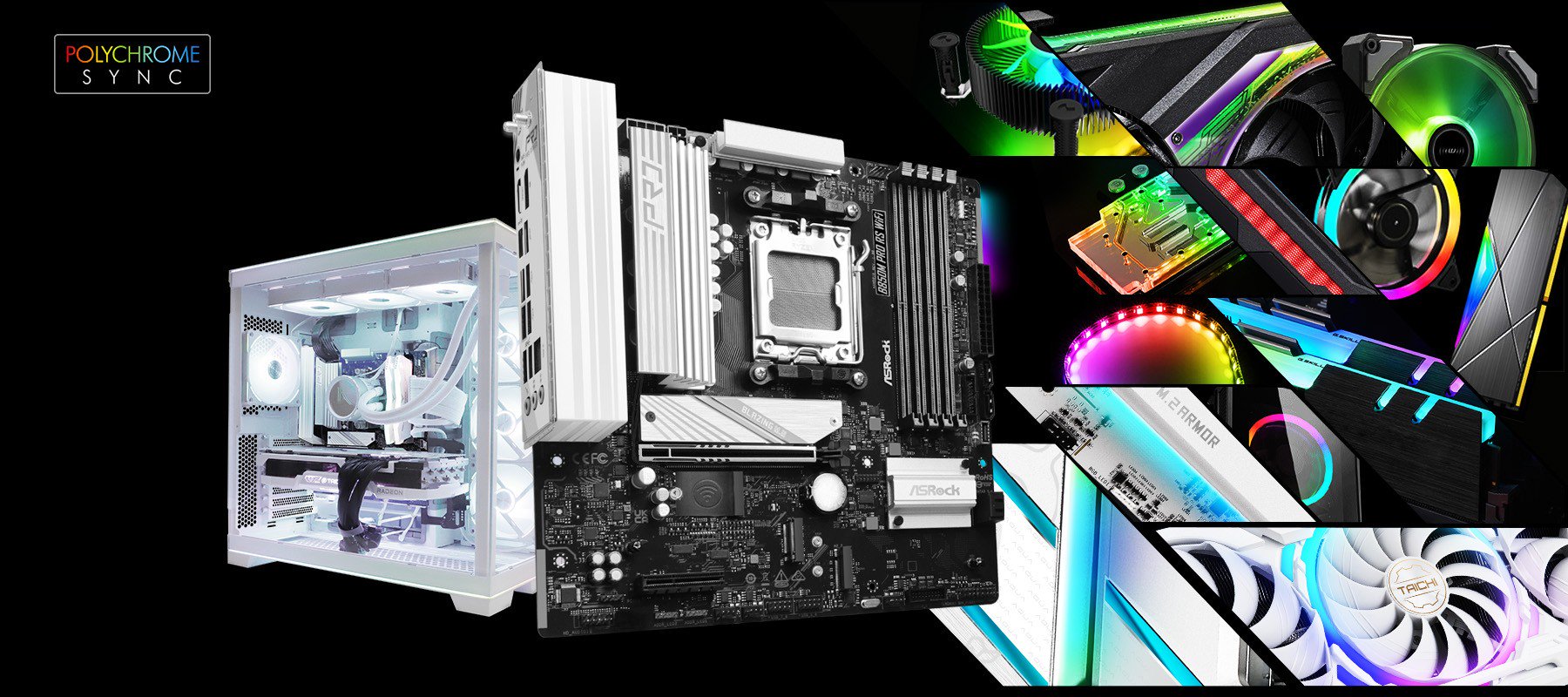

• Polychrome SYNC (RGB lighting)
• Nahimic Audio
• Operating System Support: Windows 10 64-bit / 11 64-bit
