ASRock B650M-H/M.2+ Motherboard DDR5 DIMMs 6 USB HDMI DisplayPort Micro ATX 96 GB 6400 MHz Socket AM5 SATA3 6.0 Gb/s RDNA 2 Graphics Ryzen 8000 7000 Series

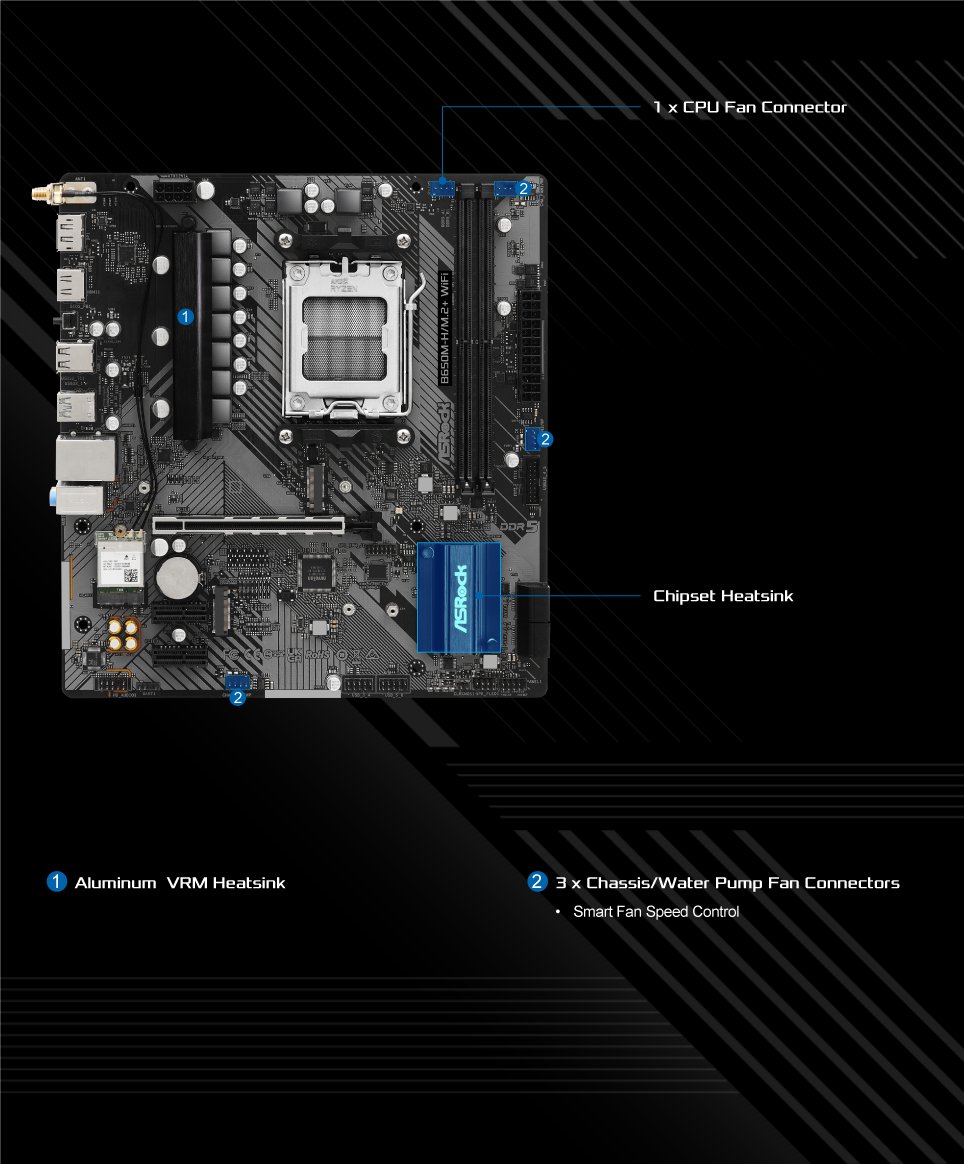

The ASRock B650M-H/M.2+ is a micro-ATX motherboard designed for AMD's Socket AM5 processors, including the Ryzen 7000 and 8000 series. It supports DDR5 memory up to 6400 MHz (OC) and offers a range of connectivity options suitable for modern computing needs.

Key Specifications

• CPU Support: AMD Ryzen 7000 and 8000 Series (Socket AM5)
• Chipset: AMD B650

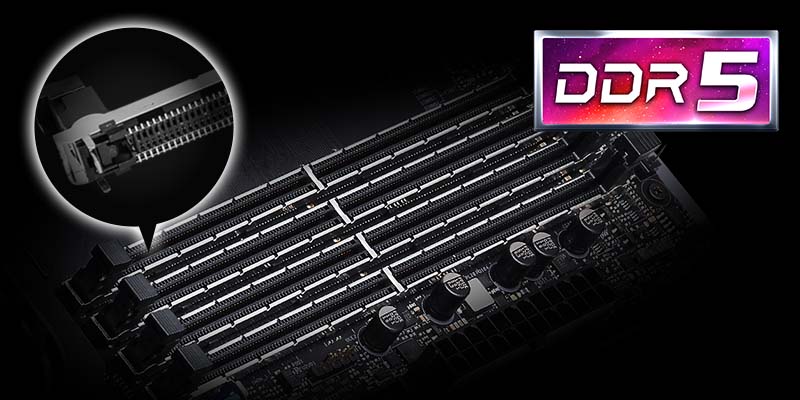

• Memory:
• 2 x DDR5 DIMM slots
• Supports up to 96 GB
• Dual Channel, up to 6400+ MHz (OC)
• Expansion Slots:
• 1 x PCIe 4.0 x16
• 2 x PCIe 4.0 x1
• 1 x M.2 Key E for Wi-Fi
• Graphics:
• Integrated AMD RDNA 2 Graphics
• Graphics Output Options: HDMI, DisplayPort
• Audio: Realtek ALC897 7.1 CH HD Audio Codec with Nahimic Audio
• Networking: Realtek Gigabit LAN
• USB Ports:
• 6 x USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
• 6 x USB 2.0 (2 Rear, 4 Front)
• Storage:
• 4 x SATA3 6.0 Gb/s
• 1 x Blazing M.2 (PCIe Gen5 x4)
• 1 x Hyper M.2 (PCIe Gen4 x4)
• Power Phases: 6+1+1 Dr.MOS
• Form Factor: Micro ATX
• Additional Features:
• Supports ASRock Auto Driver Installer and BIOS Flashback
• Supports DDR5 ECC/non-ECC, un-buffered memory
• Supports XMP and EXPO memory modules
