| Specifications | |
|---|---|

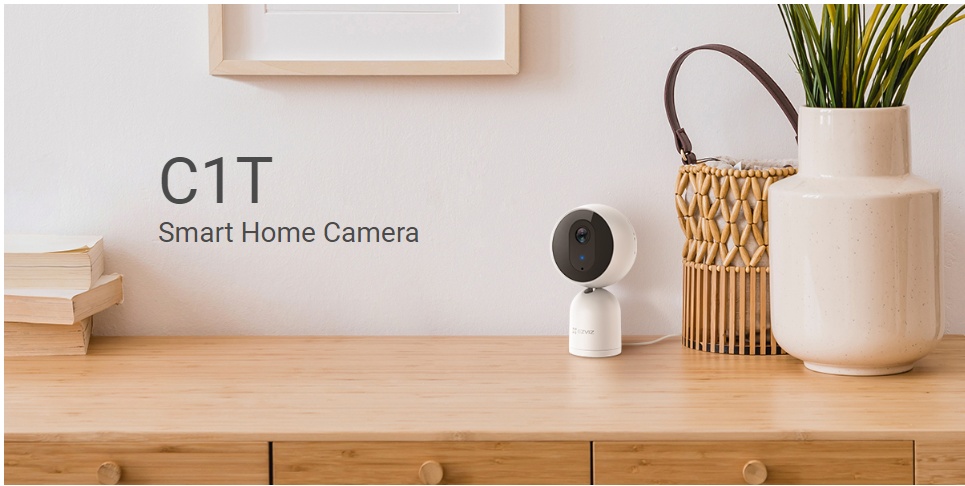

| Model | CS-C1T (1080P) |
| Camera | |
| Image sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8 mm, view angle:124° (Diagonal), 100° (Horizontal), 54° (Vertical) |
| Minimum Illumination | 0.5 Lux @(F2.2, AGC ON), 0 Lux with IR |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| Night Vision | 12 m / 39.6 ft. |
| Video & Audio | |
| Max. Resolution | 1920 x 1080 |
| Frame Rate | Max:25fps; Self-Adaptive during network |
| Video Compression | H.264 |
| H.264 Type | Main Profile |
| Video Bit Rate | HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 2 Mbps |
| Function | |

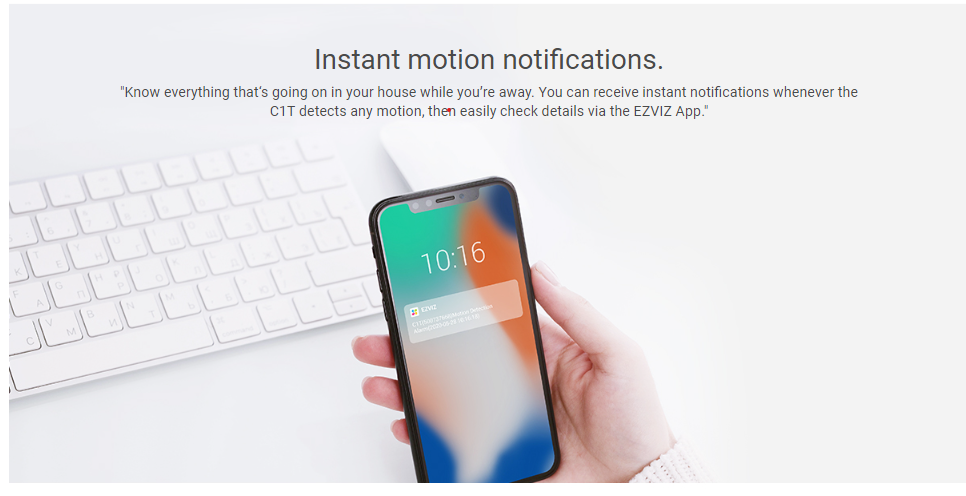

| Smart Alert | Motion detection |
| Two-way Talk | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Network | |
| Wi-Fi Standard | IEEE802.11b/g/n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Support 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n : 72 Mbps |
| WiFi Pairing | AP pairing |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Storage | |
| Local Storage | MicroSD card slot (Up to 256 GB) |
| Cloud Storage | EZVIZ Cloud Storage |
| General | |
| Operating Conditions | -10ºC ~ 45ºC (14°F to 113 °F), Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V / 1A |
| Power Consumption | MAX. 2.68 W |
| Dimensions | 52 x 64 x 115 mm (2.05 x 2.52 x 4.53 inch) |
| Packaging Dimensions | 123 x 79 x 125 mm (4.84 x 3.11 x 4.92 inch) |
| Weight (With Package) | 320 g (11.29 oz) |
| Light Weight | 118 g (4.16 oz) |
