| Specifications | |
|---|---|
| Model | CS-LC3-A0 |
| Light Parameters | |
| Lamp | 1 |
| LED | SMD LED |
| Brightness | 700 Lumen (+/-10%) |
| Color Temperature | 3000K |
| Life-span | @Ta 25°C 30000H |

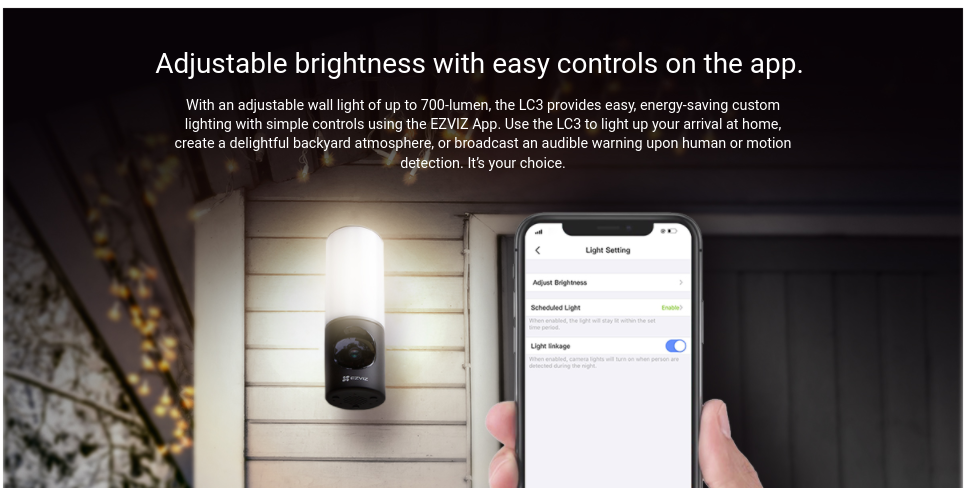

| LED Luminance | Brightness adjustable |
| Ingress Protection Grade | IP65 |
| Camera Parameters | |
| Max. Resolution | 4MP (2560 × 1440) |

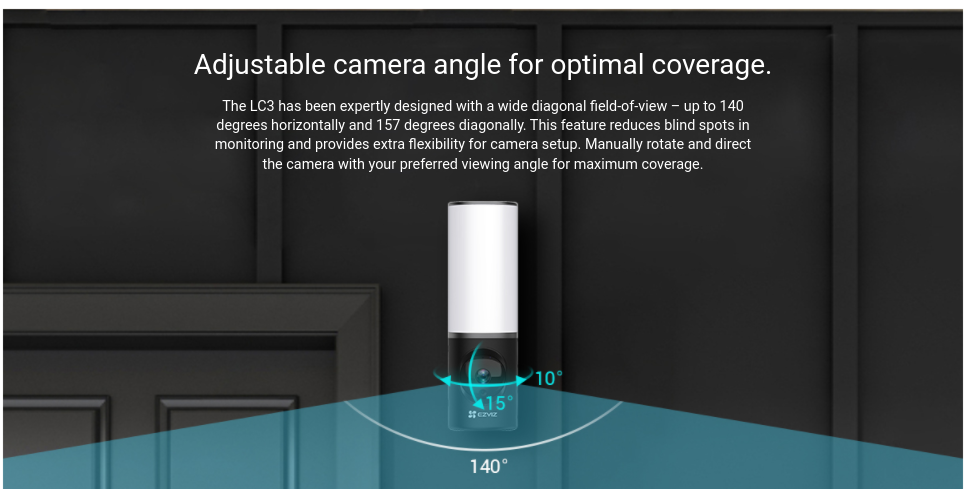

| Camera Viewing Angle | 157° (Diagonal), 140° (Horizontal), 75° (Vertical) |
| IR Range | Max. 10 m (33 ft) |
| Ingress Protection Grade | IP67 |
| Video Parameters | |

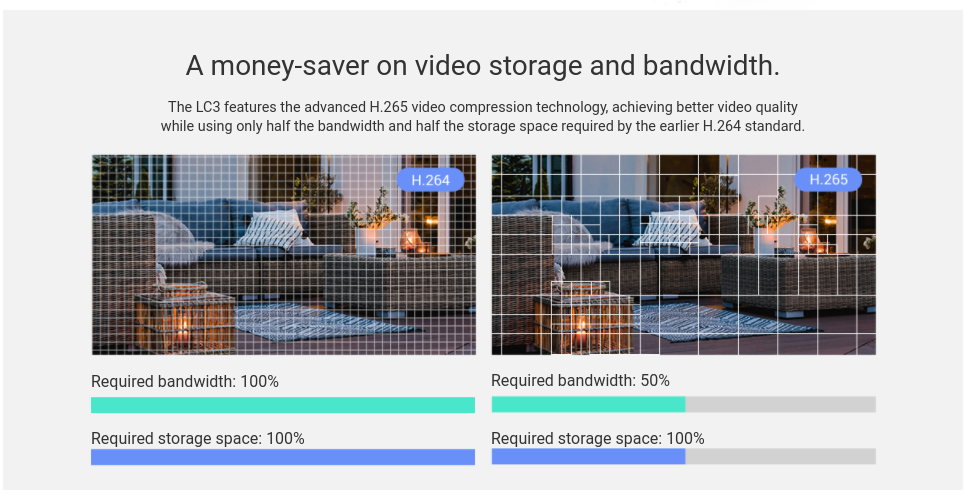

| Compression Standard | H.264 / H.265 |
| Frame Rate | Max. 30 fps, self-adaptive during network transmission |
| DNR | 3D DNR |
| WDR | Supports |
| Audio Parameters | |
| Audio Input | Built-in Omni-direction microphone |
| Audio Output | Built-in loudspeaker |
| Audio Quality | Noise suppression |
| Function | |
| Smart Alarm | AI-powered human detection |

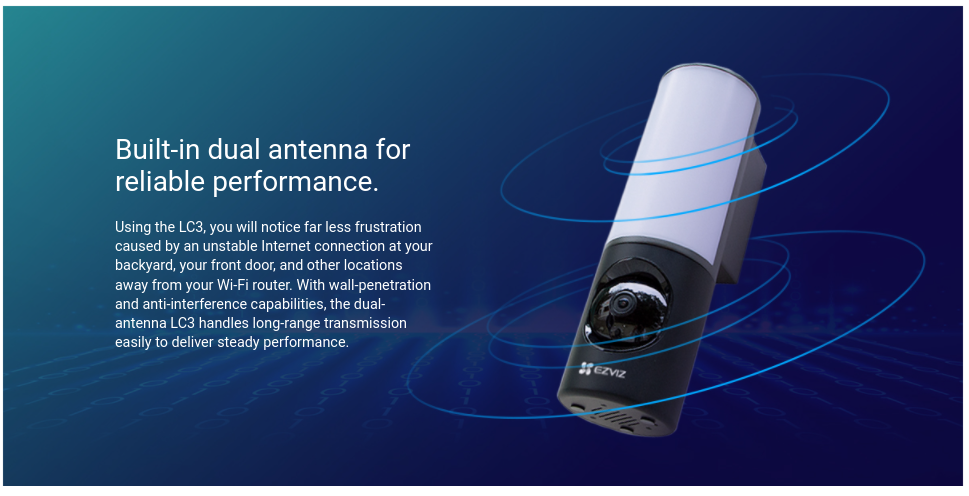

| Dual-antennas | Supports |
| Two-way Talk | Supports |
| General Function | Anti-flicker, dual-stream, heart beat, password protection, watermark |
| Network Parameters | |
| Wireless | 802.11 b/g/n @2.4 GHz only (2T2R, dual-antenna) |
| Network Configuration | AP pairing |
| Storage | |

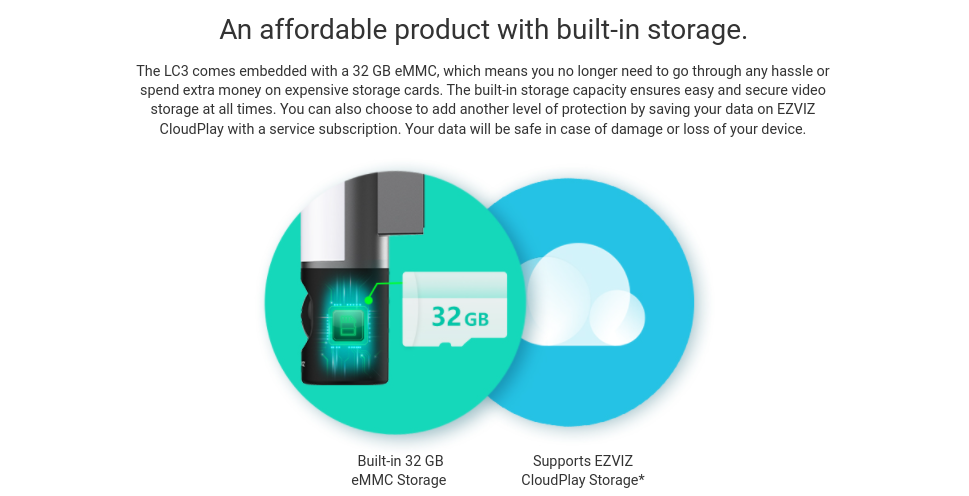

| Local Storage | Built-in 32 GB eMMC storage |
| Cloud Storage | EZVIZ Cloud Storage |
| Colors | |
| Available colors | Black |
| General | |
| Working Temperature | -30°C to 50°C (-20°F to 120°F), humidity 95% or less (non-condensing) |
| Power | 110VAC - 240VAC, 50 HZ / 60 HZ |
| Power Consumption | Max. 30 W |
| Product Dimensions | 86 x 280 x 120 mm (3.39 x 11.02 x 4.72 inch) |
| Package Dimensions | 156 x 152 x 320 mm (6.14 x 5.98 x 13 inch) |
| Net Weight | 1038g (36.61 oz) |
| In the box | |

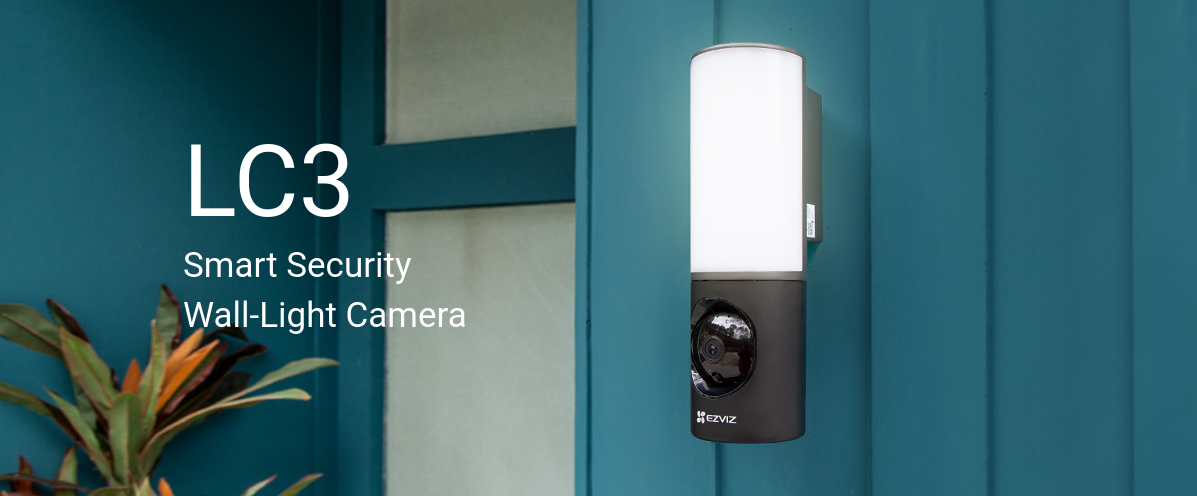

| In the box | ‘- LC3 Smart Security Wall-light Camera |
| - Drill Template | |
| - Screw Kit | |
| - Quick Start Guide | |
| Certifications: | |
| Certifications: | CE / ROHS / REACH / WEEE |
